CK-002Pro Smart Tea Brewer

CK-002Pro

CK-002Pro Smart Tea Brewer

Single-cup tea brewer with a rotary pump and a 4000W power specification. Confirm the brewing settings and site requirements for the quoted configuration.

CNY 9,800.00Reference retail price
Get a quote

Product specifications

Published model and source-sheet data. Configuration ranges and listed timings depend on the selected version and operating conditions. Source-sheet dimensions are reference measurements, not confirmed current delivery dimensions. Confirm the final configuration, electrical supply and supplied accessories before ordering.

Model
CK-002Pro
Pump type
rotary
Power
4000W
Brewing format
Single cup (approx. 300-500 ml)
Voltage
110-220V wide-voltage design
Color
Black / white
Temperature control
PID control, ±1°C
Pressure gauge
Round gauge, standard
Source-sheet dimensions (L × W × H)
270 × 674 × 464 mm

CK smart tea brewer series

Consistent tea extraction, from a single cup to batch preparation.

CK smart tea brewers combine a pump system with a smart control module to reproduce a tea master’s technique. Water temperature, time, pressure and flow are controlled precisely, so every batch is bright in colour, clean in aroma and consistent in taste — improving both drink quality and serving speed.

Core features

  • Smart extraction programsPreset programs for teas such as green, black and oolong. Select one and the brewer runs the water temperature, time and extraction sequence automatically. Ten cup-volume programs can be stored.
  • Professional pump technologyVibration pump: quick start and compact build. Rotary pump: steady pressure, low noise and long service life for a gentler, more consistent extraction. Adjustable pressure: set the pressure to suit delicate green teas or strong, high-pressure brews.
  • T3 temperature controlPID control holds water temperature to ±1°C. Boiler (T1), steam (T2) and brew-head (T3) temperatures are set separately to bring out each tea’s aroma.
  • Flexible capacityFrom single cups of about 300–500 ml to 2000 cc and 5000 cc batches, covering both peak-hour made-to-order drinks and advance preparation.
  • Segmented pressure profilesOn the adjustable-pressure model, set different pressure stages for different teas, recipes and herbal blends to extract deeper flavour and a higher yield.
  • Your brand on the machineThe touchscreen interface and the acrylic side-panel logo can be customised for your brand. The menu switches between English and Chinese with one tap.

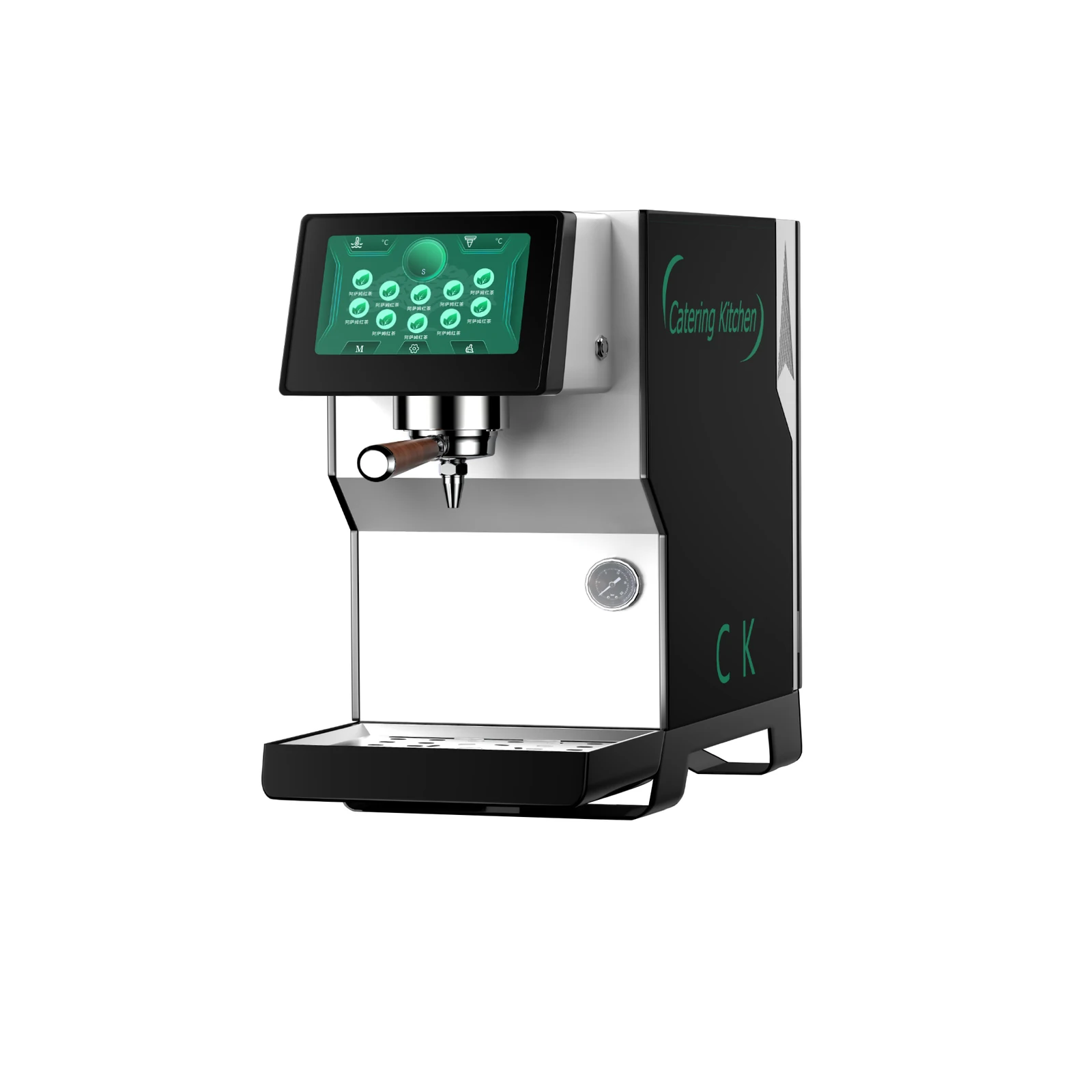

CK-002 smart tea brewer showing the touchscreen, brew-head handle, pressure gauge, power switch and acrylic side panel
CK-002 shown as the example.

Appearance and key parts

  1. 7-inch touchscreen The interface can be changed to show your brand or logo.
  2. Brew-head handle (brown wood) Loads and removes the tea basket; fitted on every model.
  3. Round pressure gauge Standard on CK-002, CK-003, CK-004 and CK-005; CK-001 has no gauge.
  4. Power switch On the right side of the head; the light shows the machine is on.
  5. Acrylic side panel The logo can be customised for your brand.
  6. Water inlet at the rear left Marked “Water Enter”; connect a tap-water or purified-water line.

Compare the series

All models: 110–220V wide-voltage design, black and white finish.

CK smart tea brewer models
ModelPumpCapacityPowerSettings menuBest for
CK-001AirVibration pumpSingle cup3000W3 settings entriesFast, efficient single-cup extraction.
CK-002Pro This modelRotary pumpSingle cup4000W3 settings entriesSteadier pressure and gentler extraction for premium single cups.
CK-003ProMaxRotary pump2000 cc3000W10 settings functionsLarge-capacity extraction for tea preparation in advance.
CK-004UltraRotary pump5000 cc4200W3 settings entriesStable pressure at 5000 cc for daily commercial volume.
CK-005UltraMaxAdjustable-pressure rotary pump5000 cc4200W10 settings functionsPressure tuned to each tea for professional, customised extraction.
CK-C01—Built-in unit4000W—Space-saving built-in design with a highly integrated, clean finish.

Basic operation

  1. Preheat: make sure the tank holds enough suitable water, switch on and wait for heating to finish. Never heat the boiler dry.
  2. Choose a program such as “Black tea” or “Green tea”. Models with a custom mode also let you set water temperature, extraction time and pre-infusion time.
  3. Load a measured amount of tea into the brew handle; grind strong teas and herbal blends for better extraction. Place a teapot or measuring cup under the outlet.
  4. Press Start. The brewer pre-infuses, extracts under pressure and stops automatically. Do not move or open the tea chamber during extraction.
  5. Remove the tea leaves straight away and rinse the filter basket. Run the cleaning program at the end of each business day.

Installation and safety

  • Electrical: the brewer draws high power. Use a dedicated, properly earthed circuit and socket; no power strips or sockets shared with other high-power equipment. Confirm your local mains voltage before installation.
  • Water: filtered or purified water is strongly recommended. Untreated tap water causes scale that can block pipes, damage the pump and heater and affect taste.
  • Placement: a stable, solid, heat-resistant and well-ventilated level counter with clearance for cooling, away from flammable materials. Built-in models must be installed by a professional.
  • Heat and pressure: the boiler, outlet and pipes are hot and pressurised in use. Do not open the cover or touch the outlet while running; cool down and release pressure before draining or cleaning.
  • First use: fill the tank with clean water and run one full cleaning cycle without tea. Operators should read the manual and receive basic training.

Product overview

CK-002Pro Smart Tea Brewer

The CK-002Pro is a single-cup tea brewer with a rotary pump and a 4000W power specification. These are the confirmed characteristics to use when comparing this model with the CK-001Air, which is also a single-cup brewer but has a vibration pump and a 3000W power specification.

Product specifications

  • Model: CK-002Pro.
  • Brewing format: single cup.
  • Pump type: rotary.
  • Power specification: 4000W.

Evaluate your brewing workflow

Provide the tea varieties, serving sizes and recipe steps you intend to use. Ask which brewing volumes and controls are available, and confirm the temperature range, extraction time and cleaning routine for the quoted machine. Request a cycle-time assessment for your menu and peak order demand; pump type and power alone do not establish hourly output.

Prepare the installation

Confirm the overall machine dimensions, counter space and required clearances. Ask for the water inlet, filtration and drainage requirements, together with the voltage, frequency, plug and electrical circuit requirements. Check how operators will load, dispense and clean the machine within your counter layout.

Information for a quotation

Send CK-002Pro, order quantity, delivery destination, tea recipes, intended serving volumes and a counter plan or available dimensions. Request a quotation that confirms the configuration, supplied accessories, installation details and commercial terms.

Frequently asked questions

What makes its specification different from CK-001Air?
CK-002Pro is specified with a rotary pump and 4000W power; CK-001Air is specified with a vibration pump and 3000W power. Confirm recipe-level performance when selecting between them.

Is a large-batch capacity listed?
This model is identified as a single-cup tea brewer. Ask for the supported working volume for your recipe.

Are pressure and brewing temperature published?
Those values are not verified in this product record. Request the specifications for the exact configuration.

Can the machine be ordered for my country?
Include your destination in the inquiry so the electrical specification and commercial terms can be confirmed.
